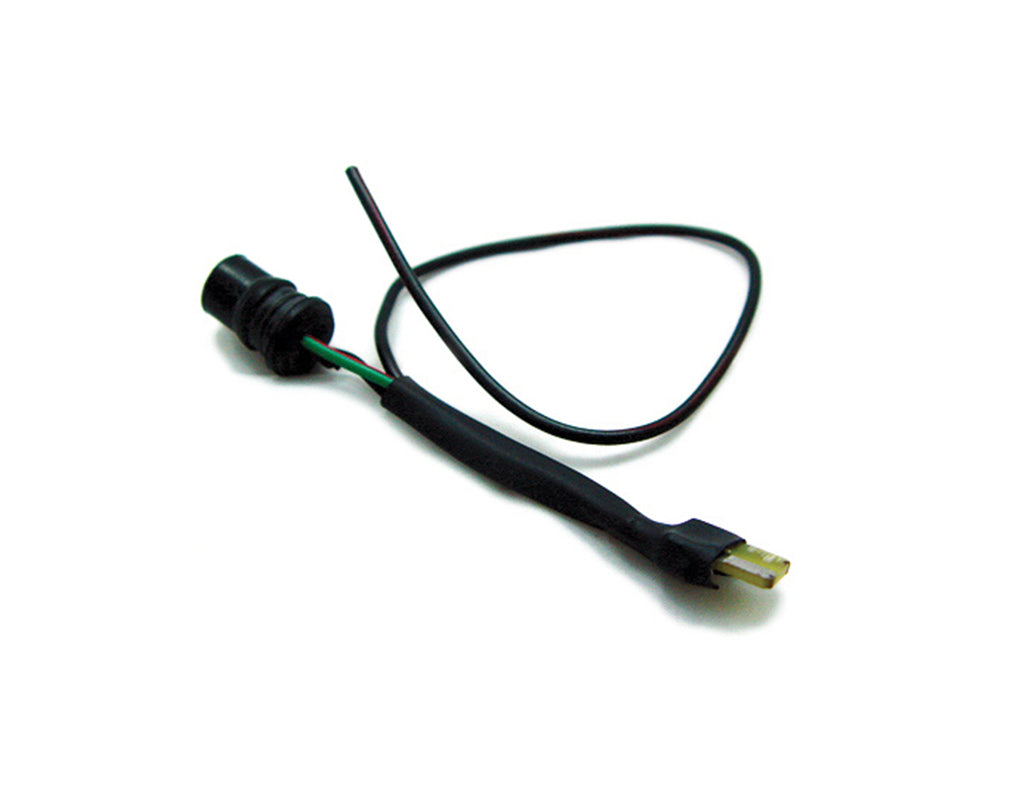

This adapter is designed to enable plug-n-play connection to switched power on any vehicle equipped with a 194 marker bulb. 194 marker bulbs are commonly found in headlight housings, functioning as a running light.

Features

• Provides switched 12v trigger to activate a relay
• Built-in Reverse Polarity Protection
• Not cutting or tapping of factory harness necessary



Installation

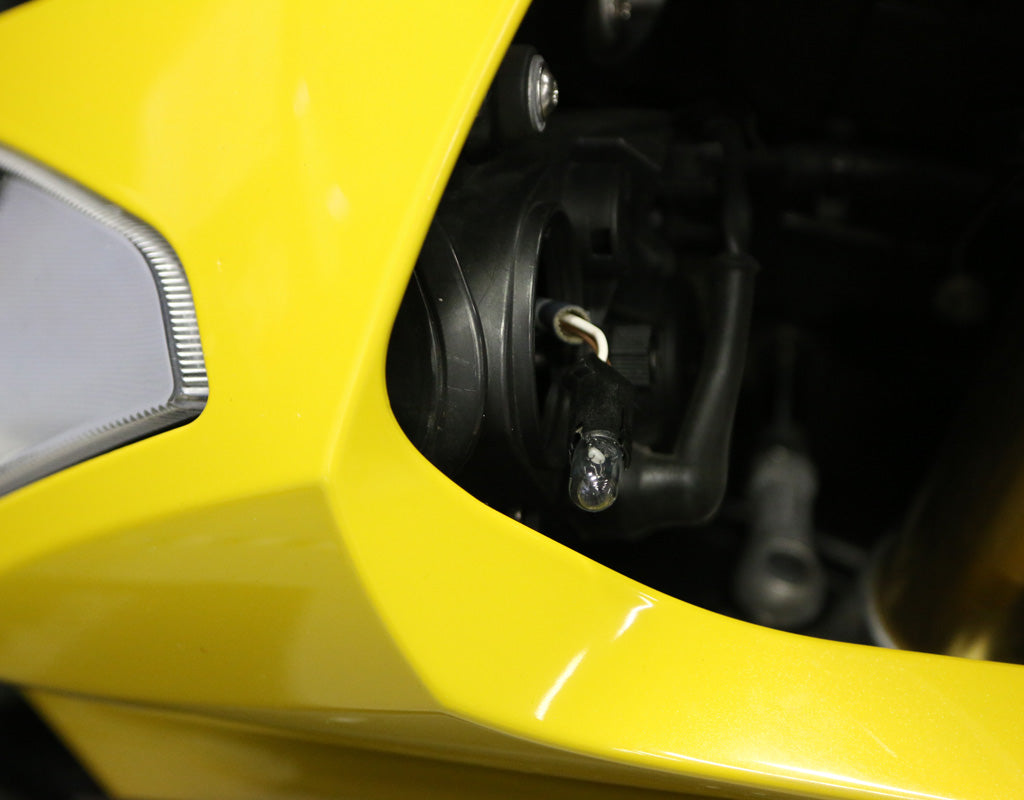

• Remove the socket from the headlight housing.
• Unplug the bulb from the socket.

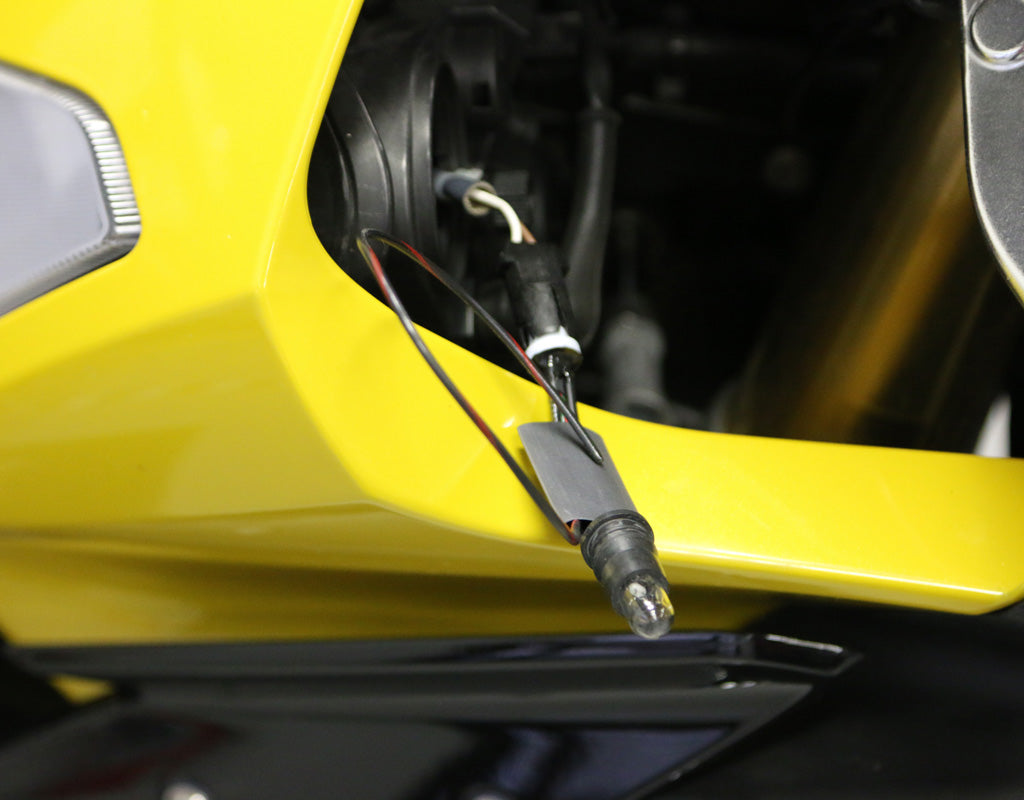

• Plug the circuit board into the socket from where you just removed the bulb.
• Place heat shrink over the socket and circuit board and apply heat.

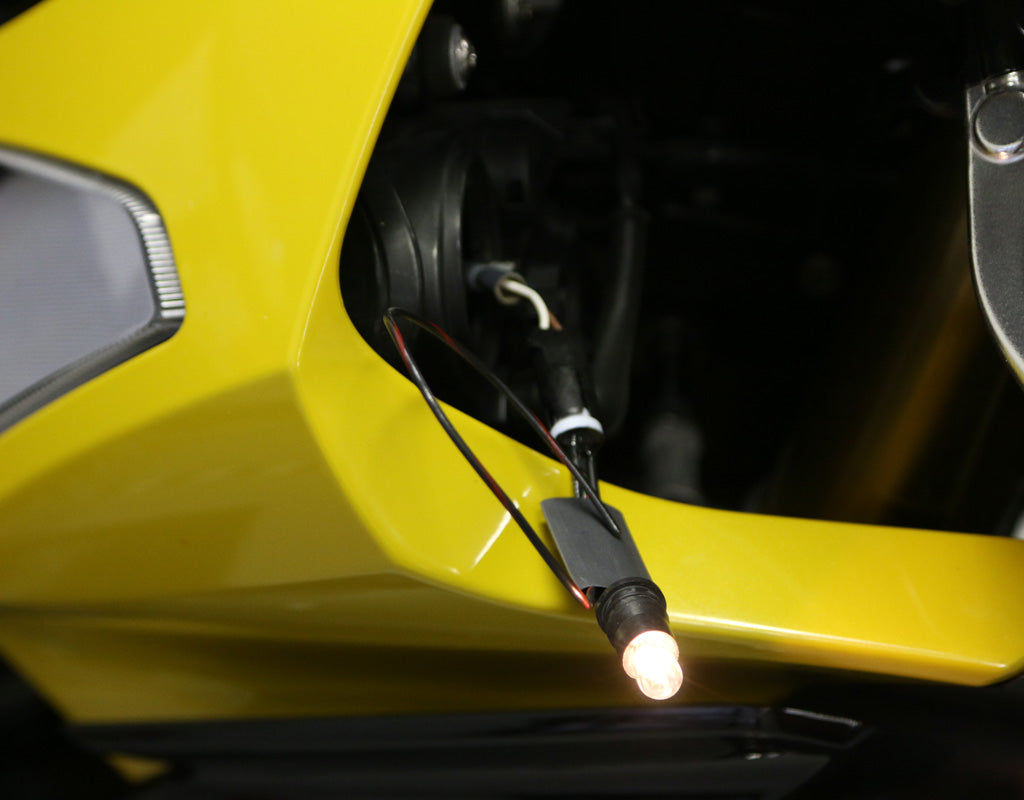

• Plug the bulb into the new socket.

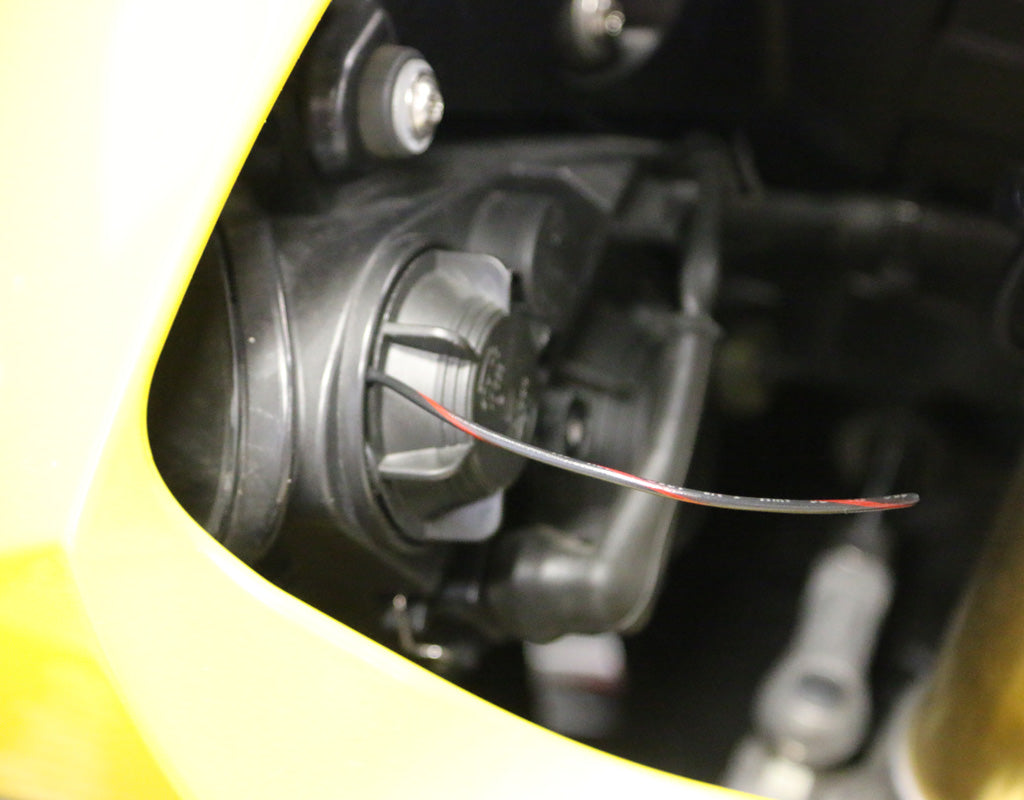

• Using the lead coming from the socket, activate an external relay.

External relay not included

Fitment Note: Only compatible with bikes that use a 194 marker bulb and have a "universal" bulb connector; will not fit bikes with a custom OEM 194 bulb connector.
