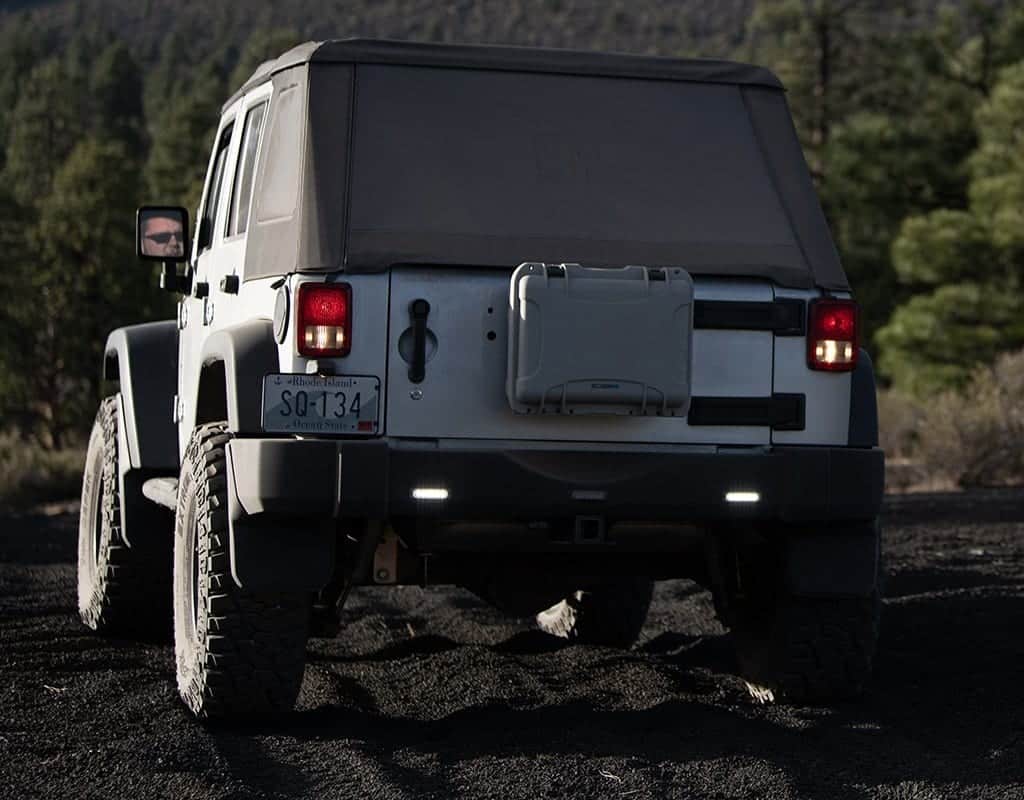

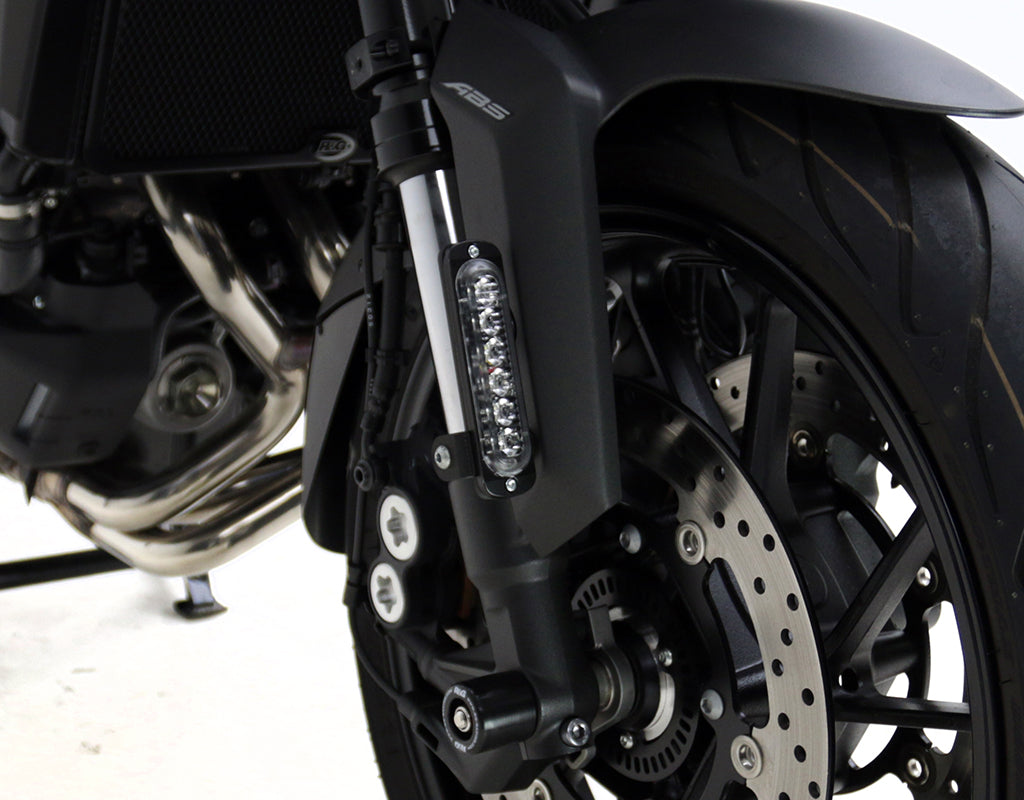

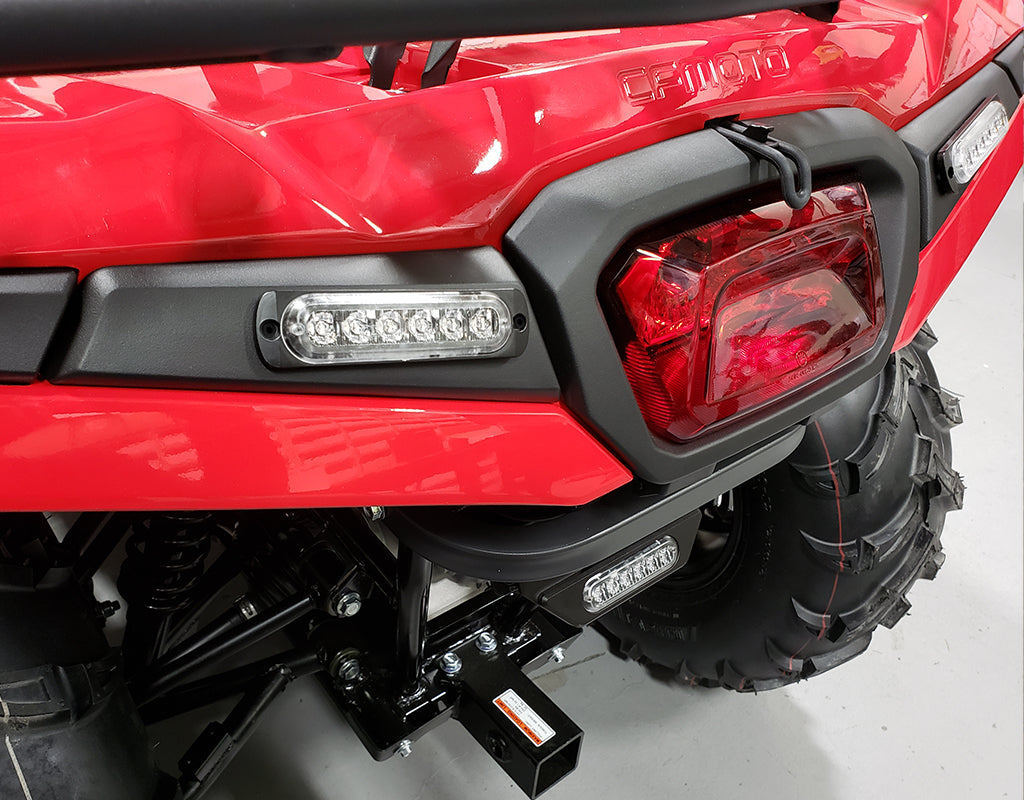

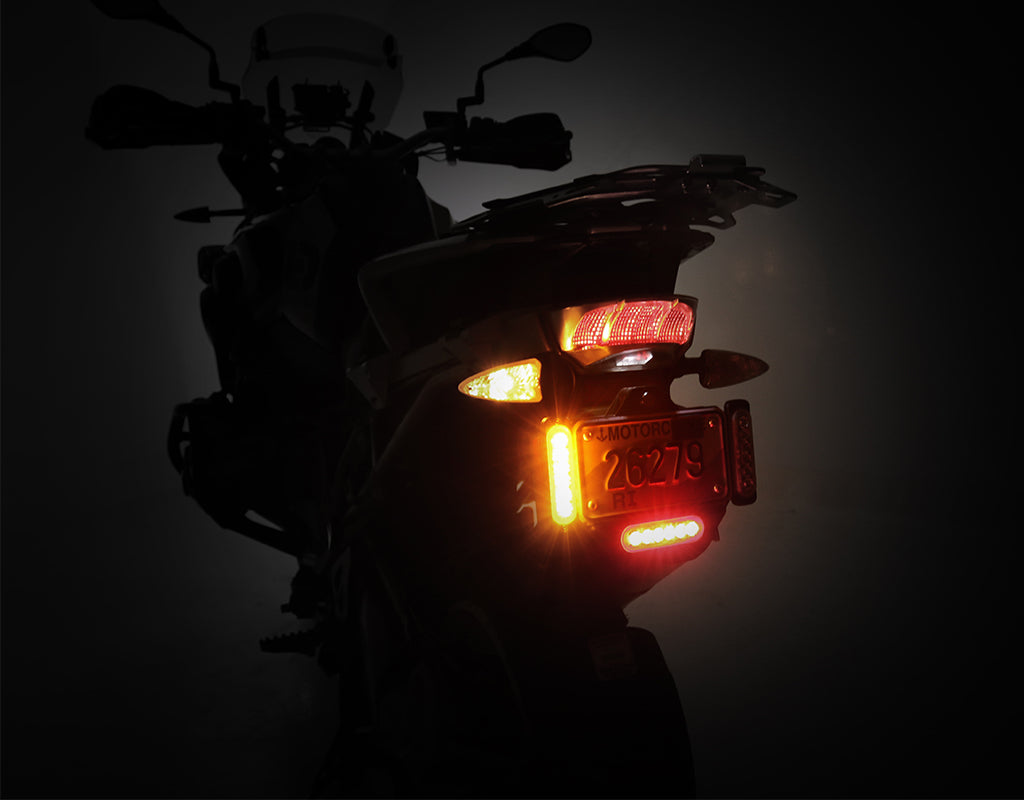

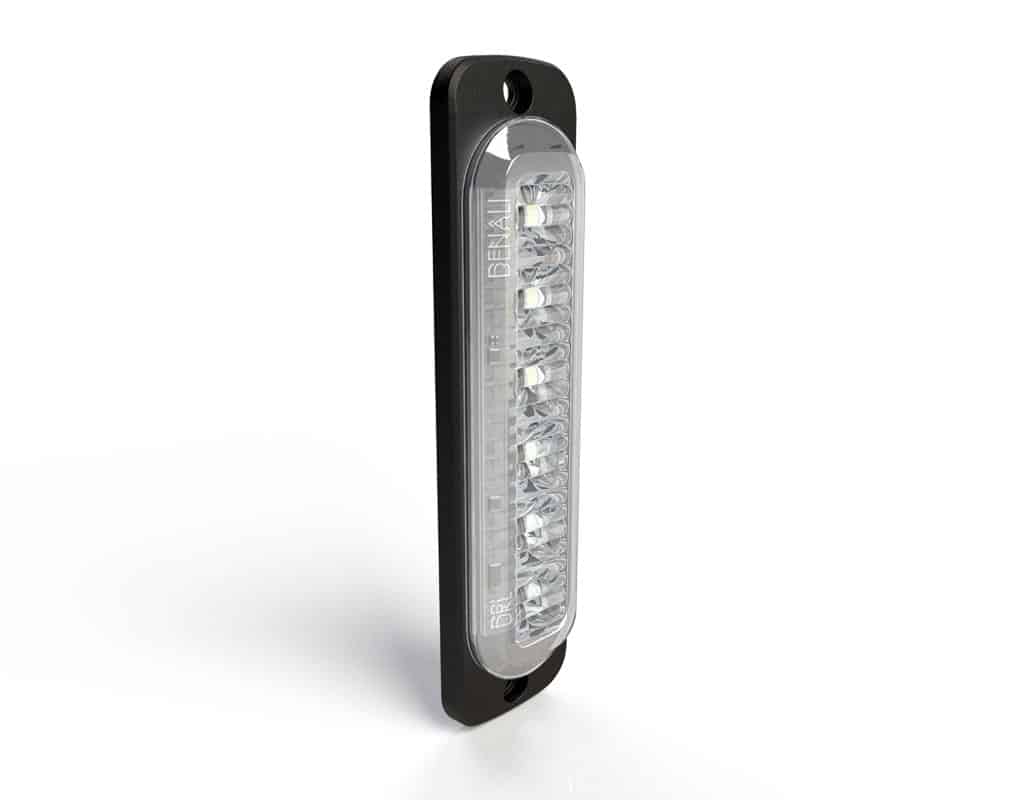

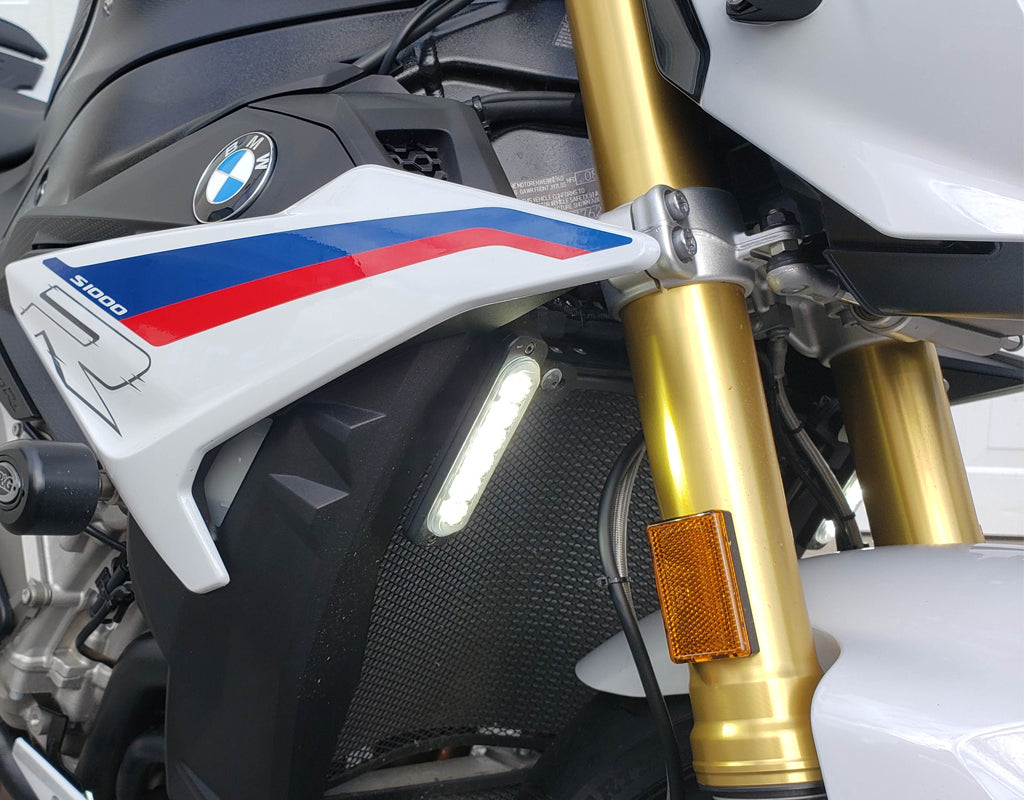

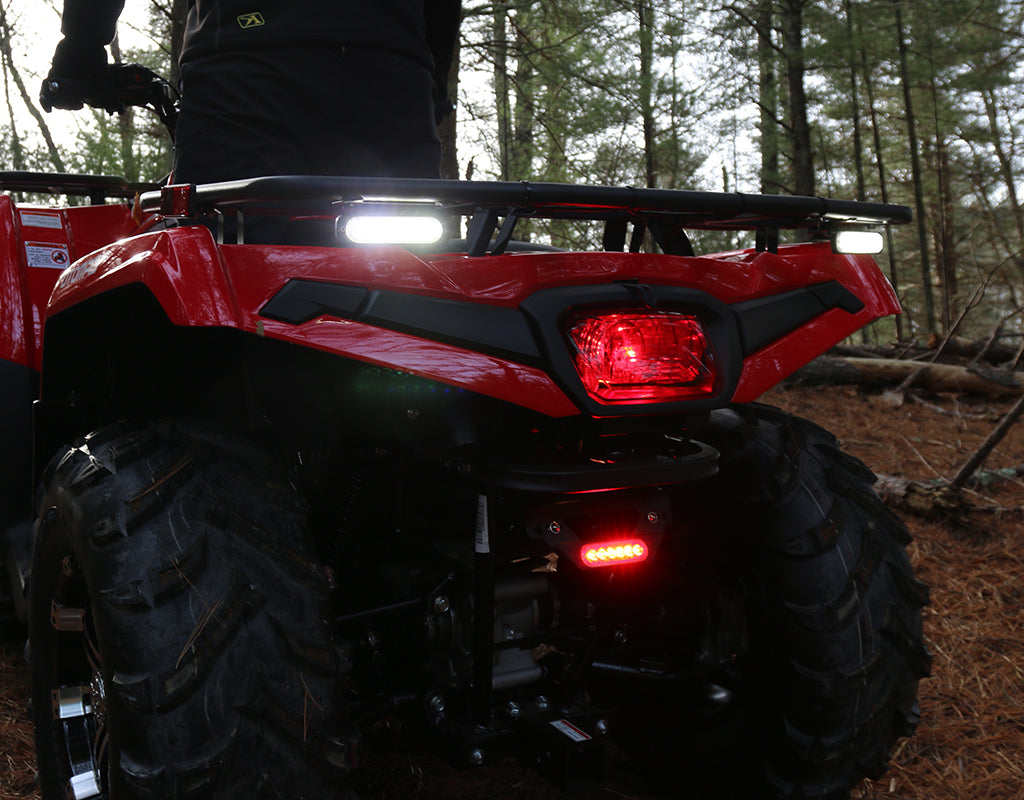

Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, our DRL Visibility Pods are unbelievably bright but will practically disappear once installed. The white and amber pods are compatible with a variety of mounting kits that enable the lights to be used as DRLs, turn signals and backup lights. Choose between an offset mount, fender mount, or flush mount.

Complete with an integrated dual intensity circuit, the lights can be wired to run at full intensity, half intensity or automatically switch between the two with your vehicle's original high beam switch or turn signal switch.

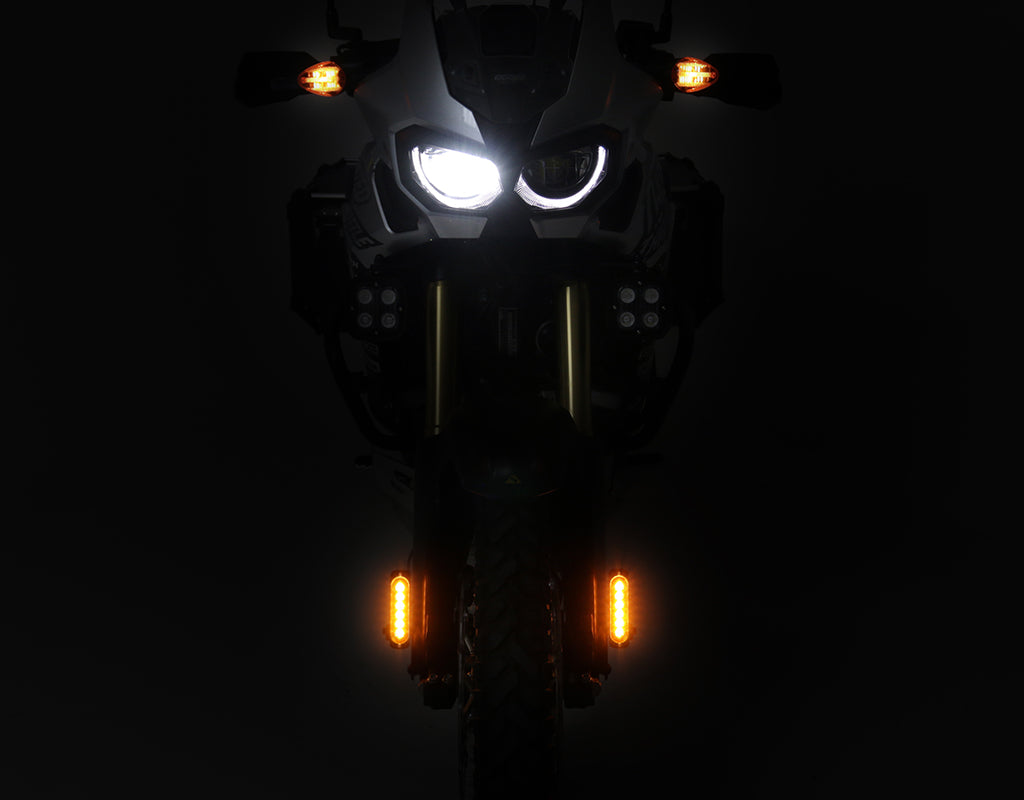

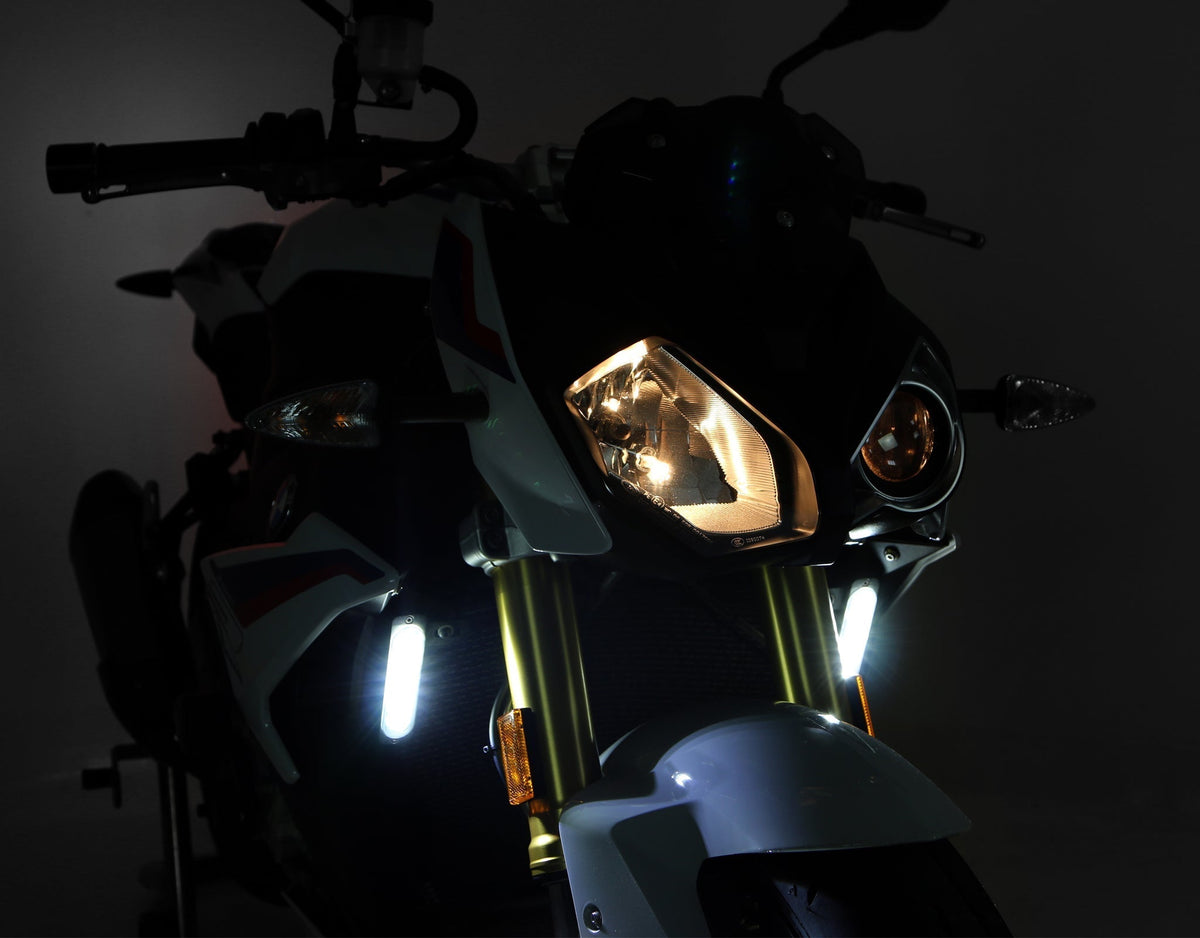

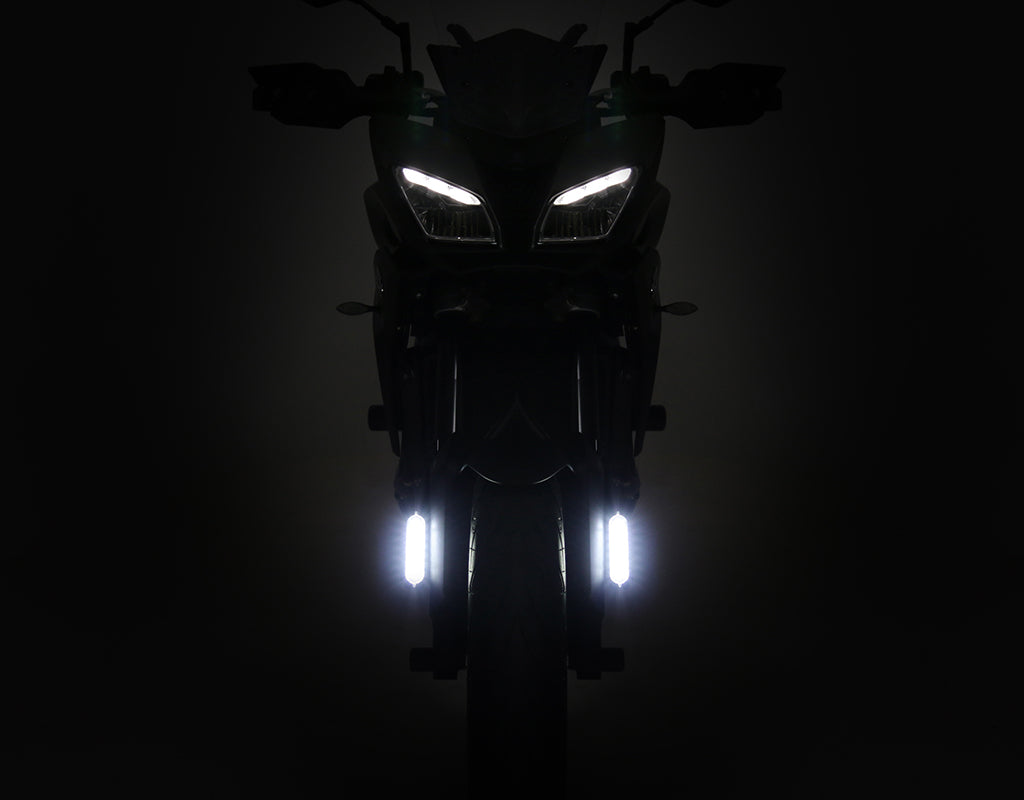

Like emergency strobe lights, our DRL optics are designed to concentrate the light at the source as opposed to project it down the road. While ideal for daytime and nighttime conspicuity, these lights will also through a noticeable spread of fill lighting at night on the immediate road ahead.

Using the included wiring adapter, the DRLs can be directly plug-and-play connected to a CANsmart Accessory Controller or to any DENALI 2.0-series wiring harness. When connected to a DENALI 2.0 harness, the DRLs will run only in high-intensity mode. But when connected through the CANsmart, the DRLs can be fully dimmed.

Features

• Dual Circuit: Running and brake
• 180 degree viewing angle
• Six high power LEDs
• Low 6 watt power consumption
• Low profile design
• Easy to connect to vehicle brake circuit



Specs

• Power Draw: 0.5 Amp
• Voltage: 12V DC

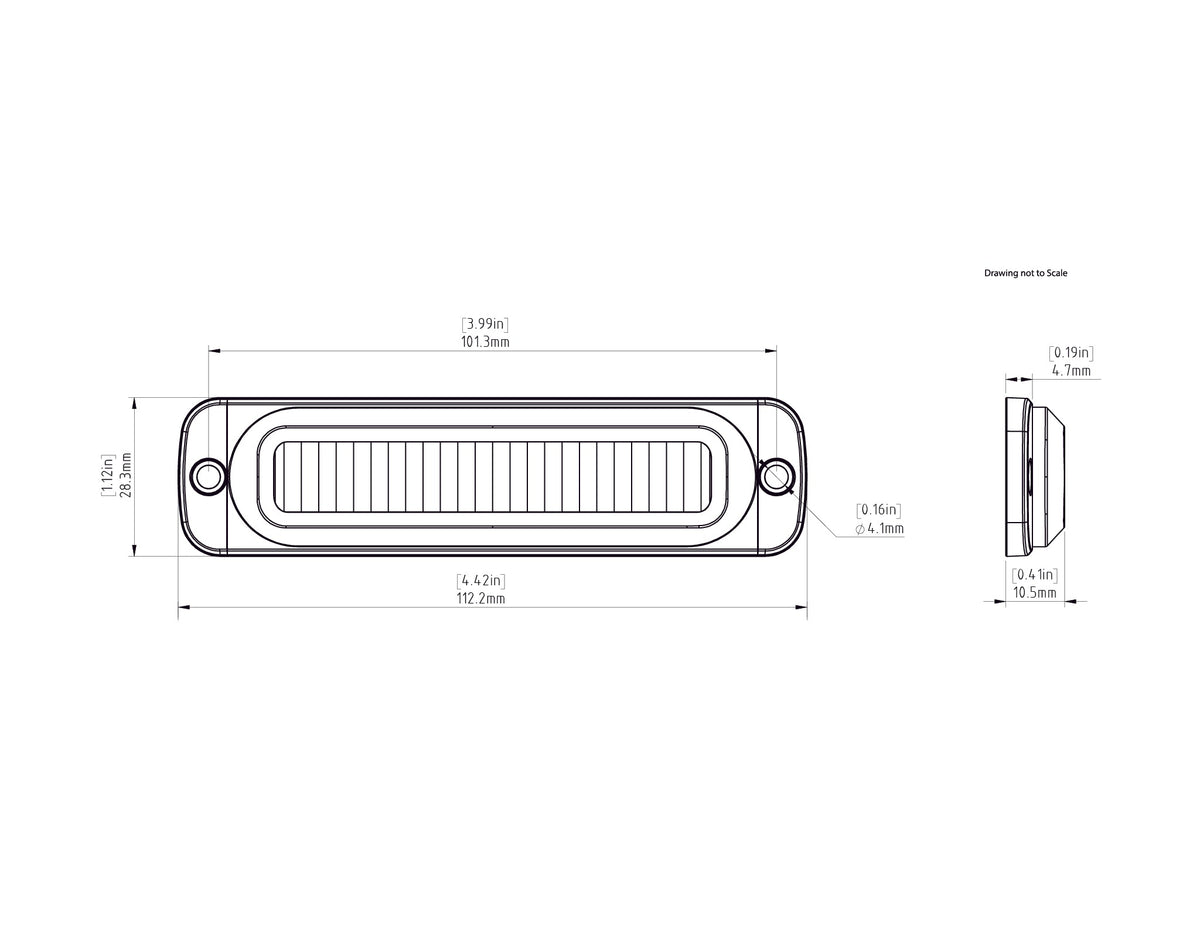

• Size: 4.4" x 1.1" x 0.42"
• Weight: 0.15 lbs
• Raw Lumens: 870
• IP67 Waterproof

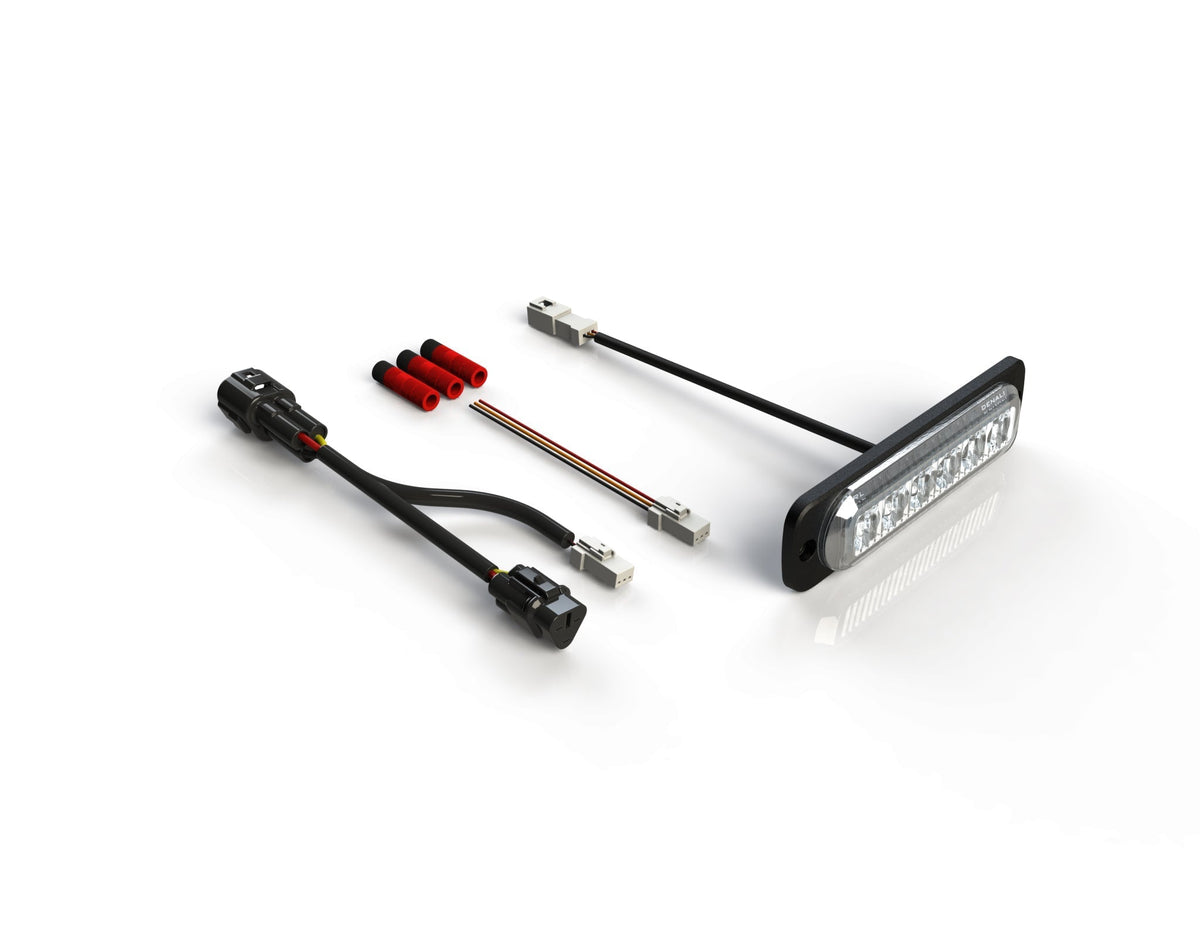

What's In The Box?

• (x1) DENALI DRL Visibility Pod
• (x1) Wiring Pigtail
• (x1) Wiring Adapter for DENALI CANsmart or 2.0 Series Lighting Harness
• (x3) Posi-Tap Connectors
