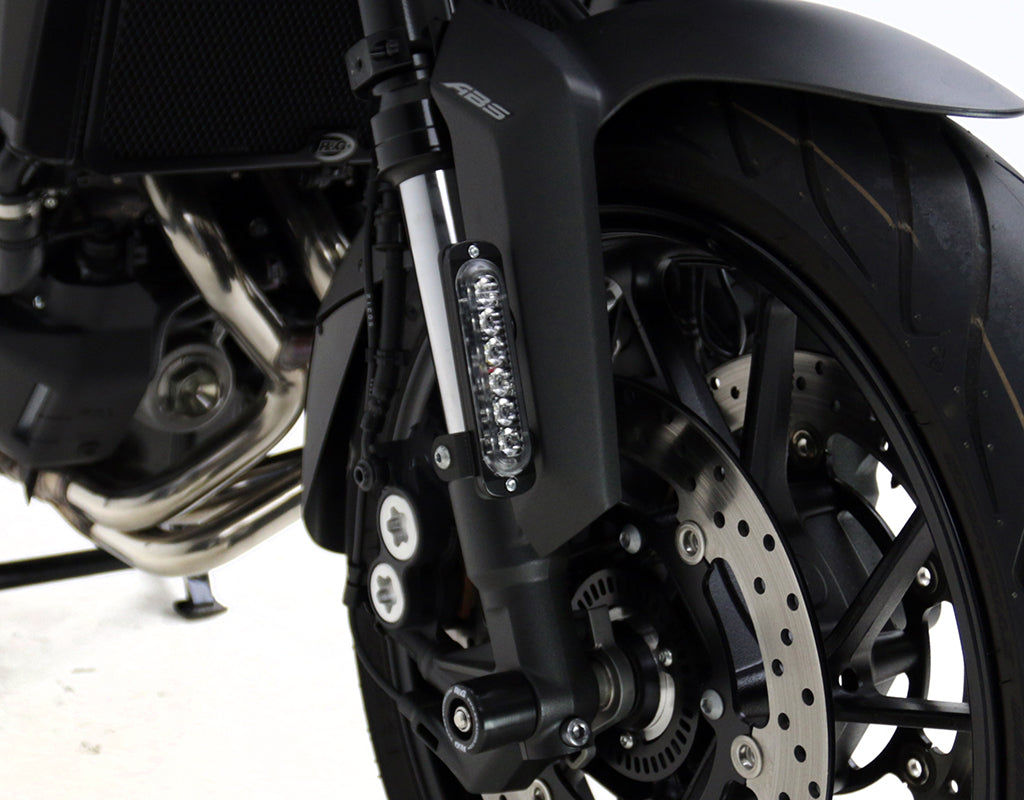

This Daytime Running Light Kit was designed to mount a pair of DENALI DRL pods to the front fender of your bike to create maximum visibility to oncoming traffic. This kit directly replaces your original M5 or M6 fender hardware securing the DRL’s close to the fender for a sleek low-profile installation.

Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, the DENALI DRLs are unbelievably bright but will practically disappear once installed. Complete with an integrated dual intensity circuit, the lights can be wired to run at full intensity, half intensity or automatically switch between the two with your vehicle's original high beam switch. The waterproof connector and posi-tap pigtail are designed to be wired right into your vehicle's running light circuit making installation a breeze and operation effortless; the DRLs will simply come on and off with your vehicle's ignition.

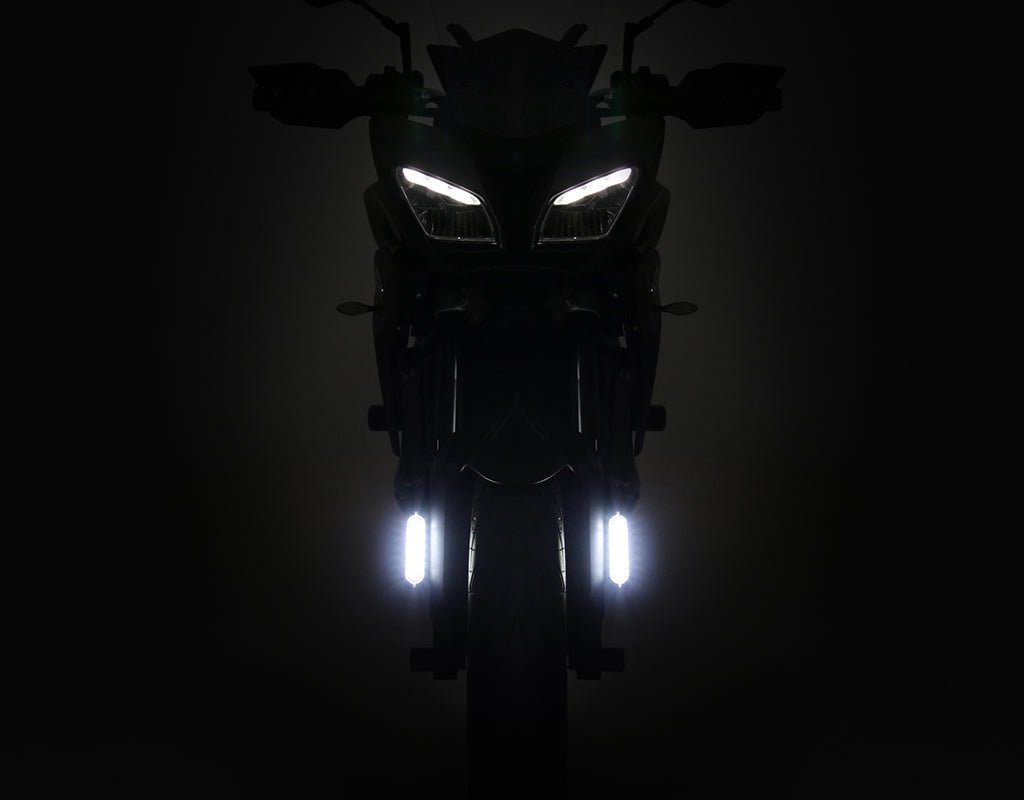

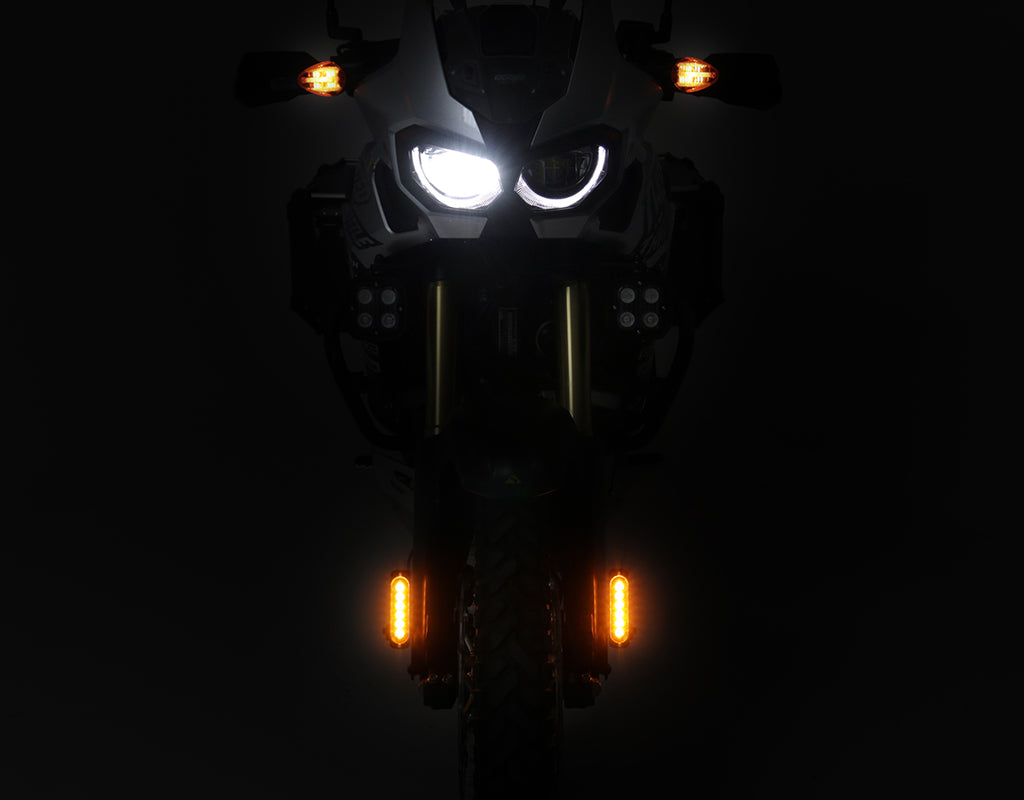

Like emergency strobe lights, our DRL optics are designed to concentrate the light at the source as opposed to project it down the road. While ideal for daytime and nighttime conspicuity, these lights will also through a noticeable spread of fill lighting at night on the immediate road ahead. Available in White and Amber

Using the included wiring adapter, the DRLs can be directly plug-and-play connected to a CANsmart Accessory Controller or to any DENALI 2.0-series wiring harness. When connected to a DENALI 2.0 harness, the DRLs will run only in high-intensity mode. But when connected through the CANsmart, the DRLs can be fully dimmed.

Features

• Dual Circuit: 50% & 100% Intensity
• 180 degree viewing angle
• 12 extremely bright LEDs
• Low 12 watt power consumption
• Low profile design



Specs

• Power Draw: 1 Amp (Pair)
• Voltage: 12V DC

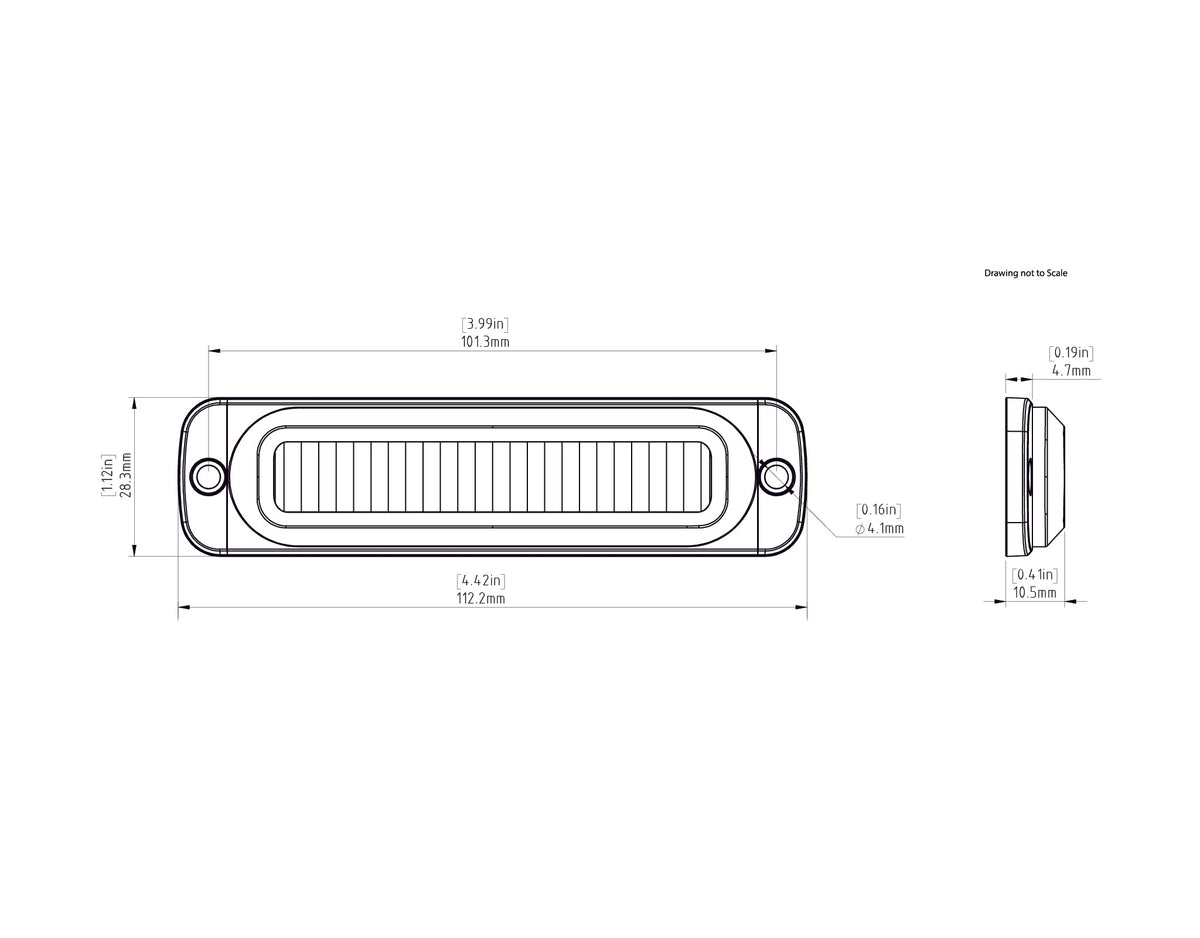

• Size: 4.4" x 1.1" x 0.42"
• Raw Lumens: 1740 (Pair)
• IP67 Waterproof



What's In The Kit?

• (x2) DENALI DRL Visibility Pods (DNL.DRL.004 or DNL.DRL.002)
• (x1) Fender Mount for DRL & B6 Visibility Pods (LAH.DRL.10000)
• Note: The items of this kit are packaged separately and may ship in separate boxes.



Instruction Manual
