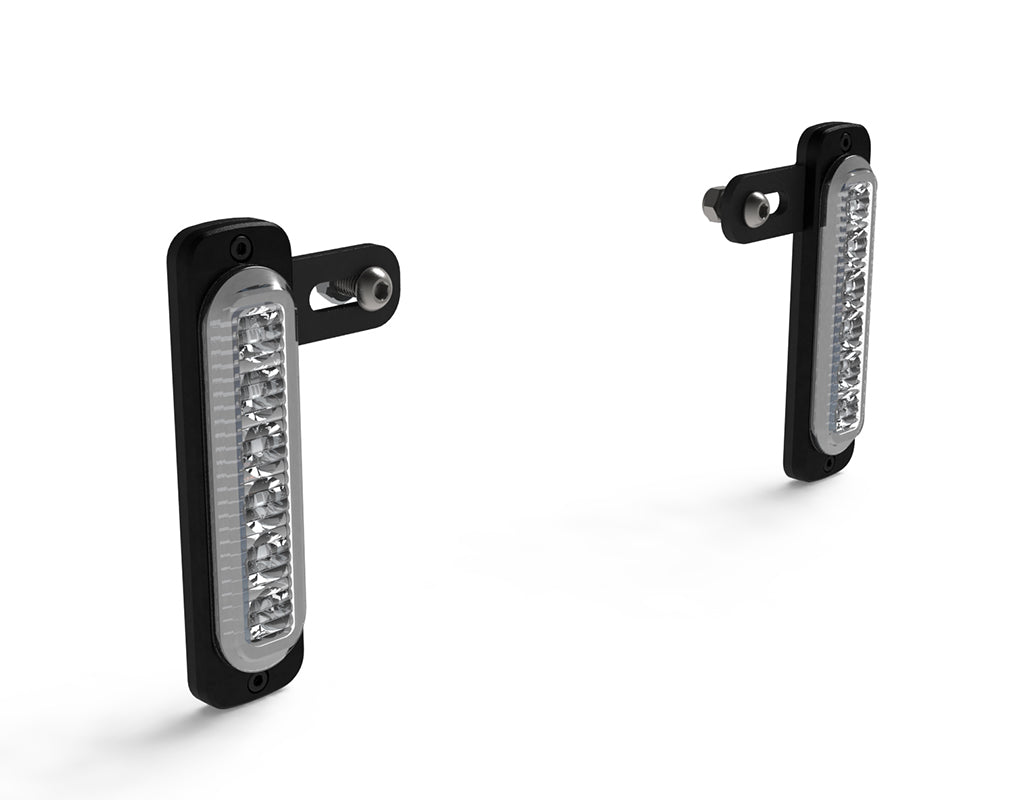

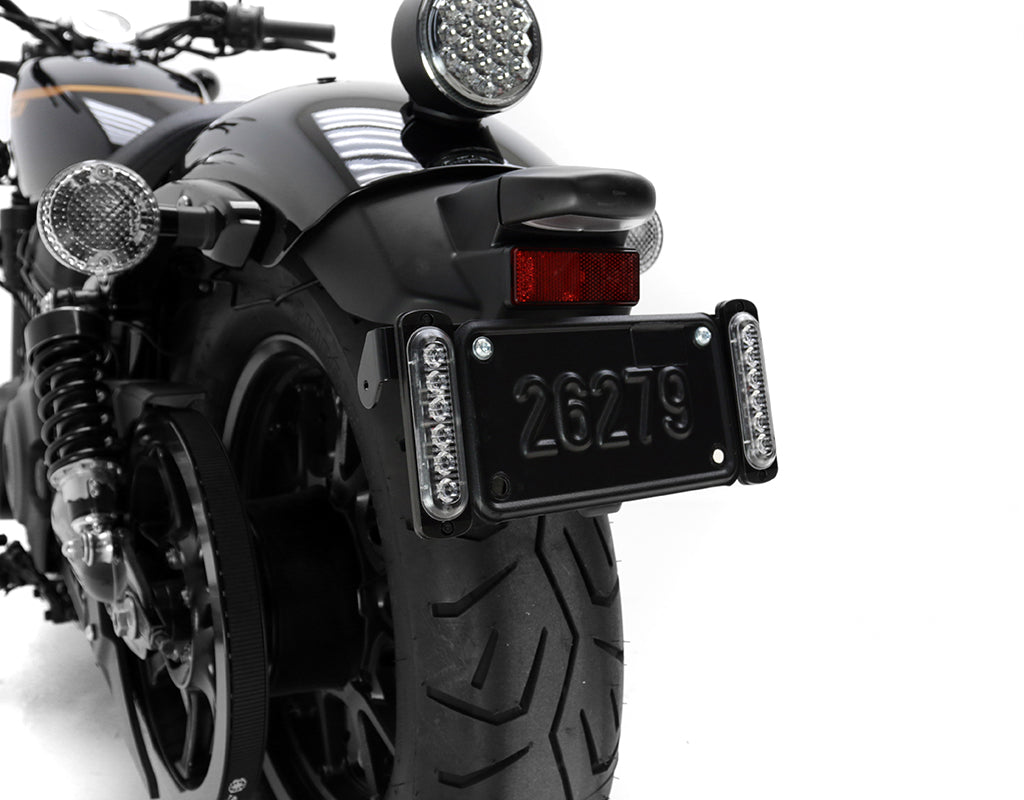

This Dual Auxiliary LED Brake Light Kit was designed to mount two B6 Pods to either side of your license plate, re-using the existing plate mounting points. Purpose built to create the most amount of light from the smallest, most low-profile housing possible, the dual B6 is unbelievably bright but will practically disappear once installed on your plate. Complete with a waterproof micro connector, plug-n-play splitter and included posi-taps, the B6 will plug-n-play directly to the DENALI CANsmart controller or connect into any vehicle brake light circuit.

The Dual B6 is the optimum auxiliary brake light to add to the CANsmart™ Controller for riders who want maximum rear visibility. Connecting to the CANsmart™ enables programmable flash pattern brake light and deceleration activated auto brake light functionality making the Dual B6 the brightest and most feature-rich auxiliary brake light on the market.

Features

• Dual Circuit: Running and brake
• 180 degree viewing angle
• Six high power LEDs
• Low 6 watt power consumption
• Low profile design
• Easy to connect to vehicle brake circuit



Specs

• Power Draw: 1 Amp (Pair)
• Voltage: 12V DC

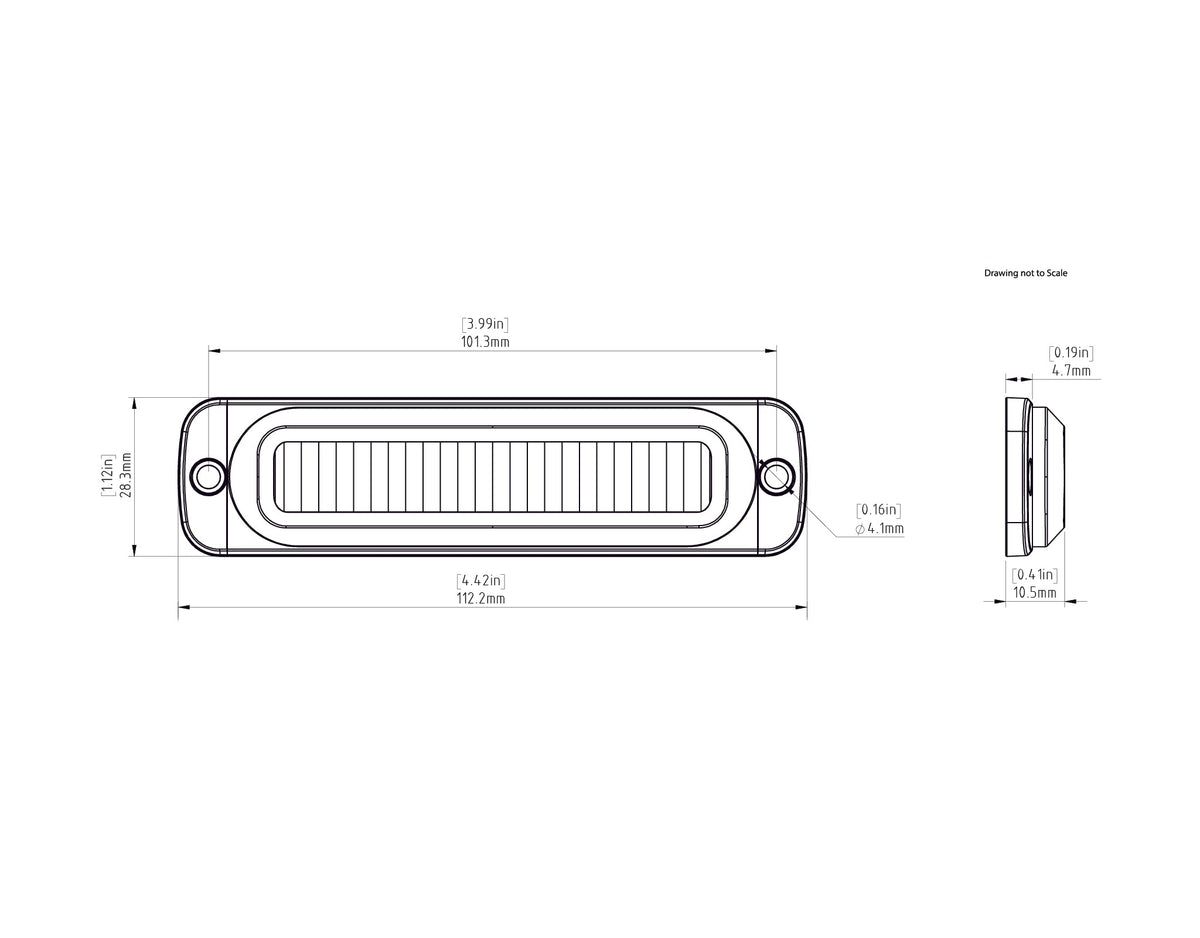

• Size: 4.4" x 1.1" x 0.42"
• Raw Lumens: 1740 (Pair)
• IP67 Waterproof



Additional Features with DENALI CANsmart™ Controller

• Programmable deceleration activated brake light
• Programmable flash pattern brake light
• Plug & play waterproof connection to CANsmart™ Controller



What's In The Kit?

• (x2) DENALI B6 Brake Light Visibility Pods (DNL.B6.003)
• (x1) Offset Mount for DRL & B6 Visibility Pods (includes wiring splitter) (LAH.DRL.10100)
• Note: The items of this kit are packaged separately and may ship in separate boxes.



Instruction Manual Download

• PDF Instruction Manual (English)
